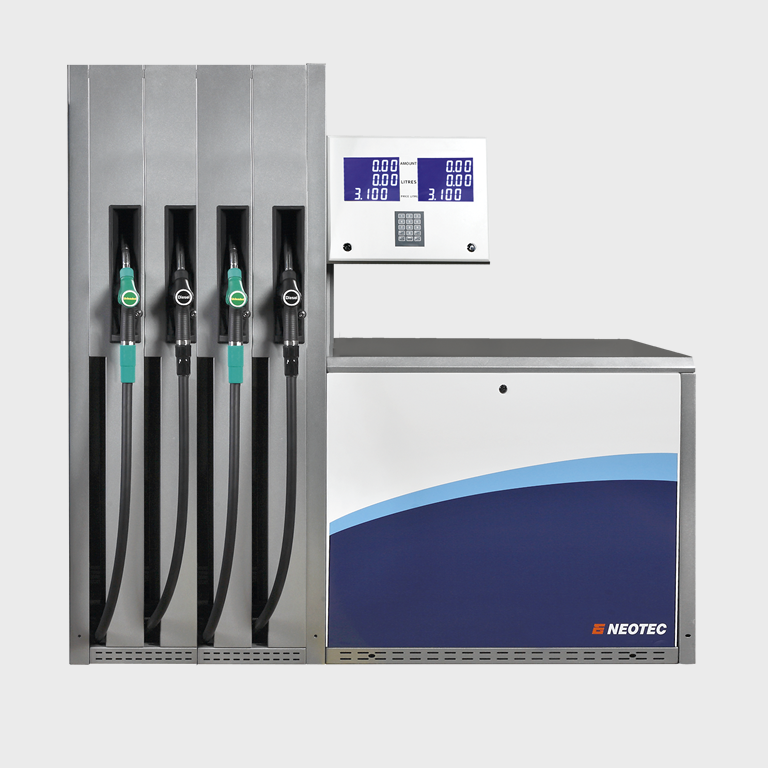

M6800 Series
sp18_032_A

M6800 Series

  • Nominal Flow Rate: 40/65/120lpm
  • Electro Mechanical Totalizers
  • Hose Retraction
  • Preset Function (value-volume)
  • LCD Back Light Display 34mm
  • Electronic Calibration
  • ATEX 2014/34/EU Certification
  • MID 2014/32/EU Certification

Aesthetics Meets Flexibility

If you are seeking Flexibility in a Modern Design, then our M-6800 Series provides the ideal choice. Fully customizable, M-6800 offers a wide range of configurations, so that all needs of the most demanding customers can be fulfilled.

General

Production facilities housed in an industrial building of 3500m2.

To comply with the up-to-date technological market requirements the production is equipped with state of the art equipment such as punching machines [CNC], testing facilities, underground fuel depots and ERP software modules.

Production facilities certified according to ATEX 2014/34/EU and MID 2014/32/EU Directives

M-6800 Series provides

  • High accuracy Flow Meter eliminates loss of product
  • State of the art Electronics
  • Robust Construction
  • Visual Standards according to customer’s needs
  • Low total life cycle cost
  • Efficient long standing support on Genuine Spare Parts
  • Fast deliveries
  • Extended Warranty
Exterior Housing

Housing

Galvanized Steel Metal Panels, powder coating paint for excellent appearance, maximum protection and long life.

Durable construction suitable for harsh environmental conditions.

Stainless Steel Metal Panels (optionally).

Hydraulics

Hydraulics

High quality hydraulic components designed for Easy Installation, Simplicity on Operation and Minimum Maintenance Requirements.

Flow Meter and Pumping Unit certified according to MID 2014/32/EU Directive, ensuring highest accuracy.

Electronics

Electronics

R&D Electronics Dept. manned with certified engineers, offering tailor made solutions.

Electronics according to latest technology, password protected, MID Certified.

Built in diagnostics with error codes indications in LCD Backlight Displays (1 1/4'' digit size).

IFSF Communication Protocol.

Features

Standard Features

  • Nominal Flow Rate: 40/65lpm
  • Electro Mechanical Totalizers
  • Preset Function (value-volume)
  • LCD Back Light Display 34mm
  • Electronic Calibration
  • ATEX 2014/34/EU Certification
  • MID 2014/32/EU Certification

Optional Features

  • Nominal Flow Rate: 120lpm
  • Vapor Recovery Stage II
  • Pulser Interface
  • High Flow Diesel Button
  • Hose Retraction
  • EMV pay at the Pump
  • Interface with OPT Systems
  • RFID Transactions
  • Automatic Temperature Compensation
  • On Pump printer
